triflex® y Easy triflex®, las Cadenas portacables para movimientos en 3D

La Serie triflex® fué elaborada para asegurar una alimentación de energía fiable en caso de movimientos multidimensionales. Aquí se combina la movilidad de un Tubo flexible con la estabilidad de una Cadena y sus radios definidos. Este programa modular único permite la realización de movimientos extremadamente complejos. En una sóla Cadena portacables es posible combinar una, dos y tres direcciones de movimiento.

Sectores industriales y aplicaciones típicas:

Máquinas herramientas, robots, equipo de manipulación, tecnología de manipulación de materiales, industria del plástico, construcción de máquinas, construcción de vehículos, ingenieria mecánica general, equipo médico, muebles de oficina

triflex® en una linea de montaje, Cadenas portacables, Cadenas portacables igus®

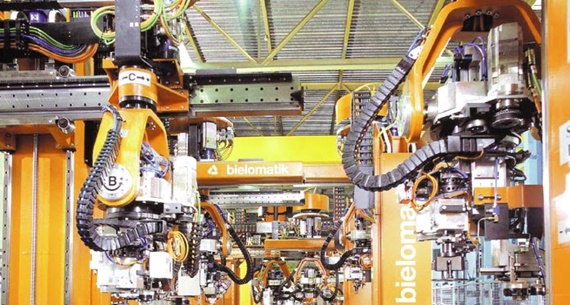

Cadenas portacables Easy triflex® y E2 medium en una linea de montaje


triflex® de igus®, Cadena portacables, industria automovilística

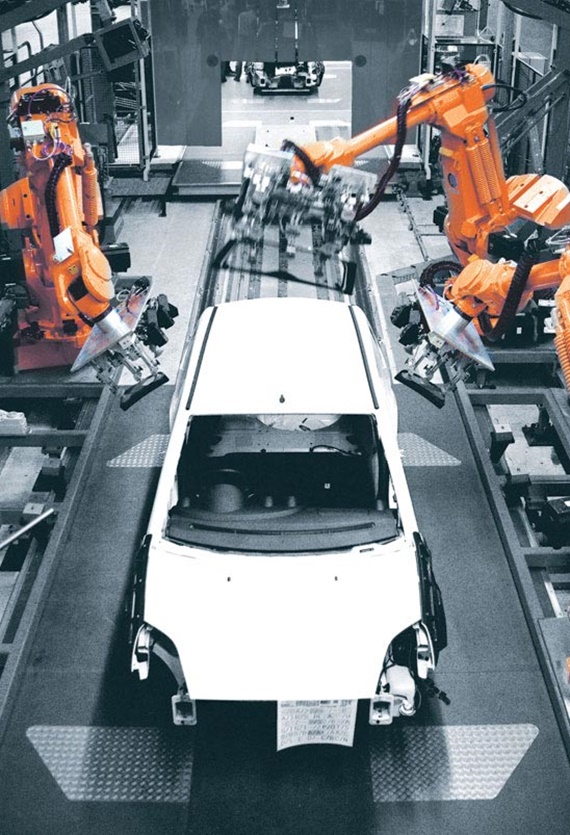

Robots equipados de Cadenas portacables Easy triflex® en una linea de montaje de la fábrica Ford de Colonia

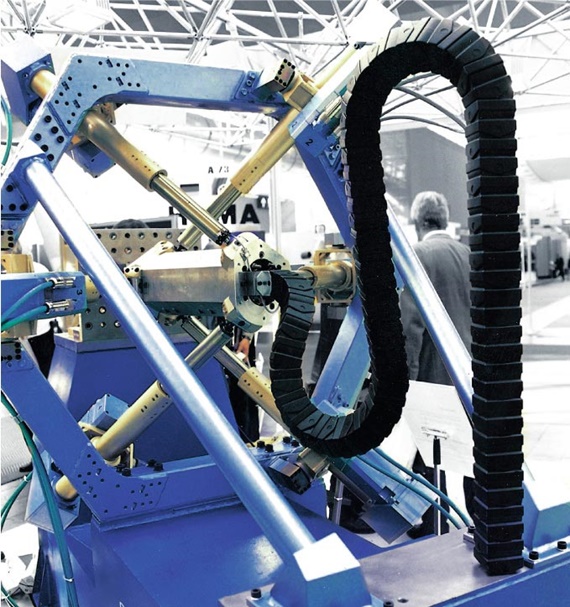

Cadena portacables triflex® para 3 direcciones de movimiento en combinación con la Serie triflex® para 1 dirección de movimiento

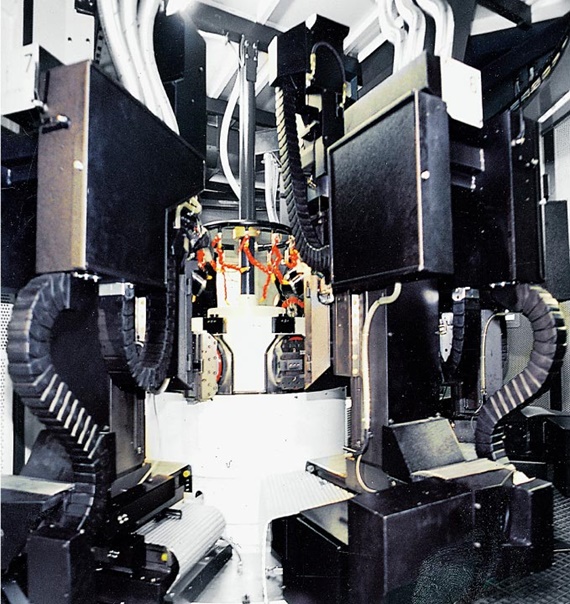

Varias Cadenas triflex® en un centro de maquinado

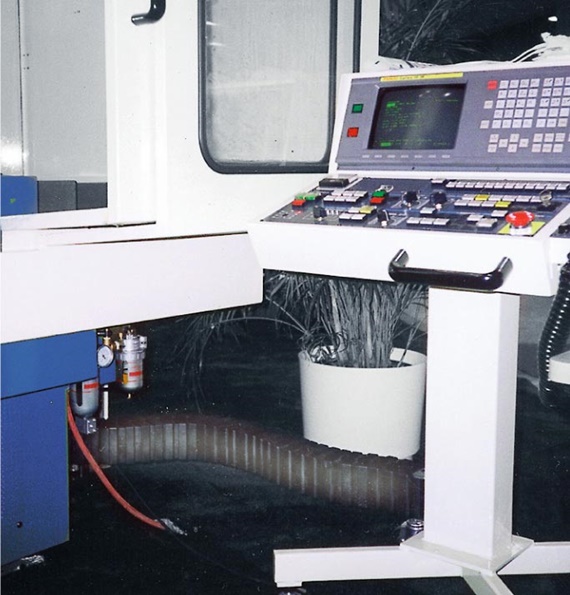

triflex® 332 como conexión sin soporte de la máquina al panel de mando



Machine tools

A machining centre with 5 axles – the headstock performs a swivel movement from 0 to 180 degree.

Machine tools

Sealing machine

A new closing machine manages two processes in one work step.

Sealing machine

Automatic welding

Industrial automation with welding robots – adapted to flexible production

Automatic welding

Robotics

Industry robots that pick up small or unwieldy products:

Robotics

Control systems

Operating stations for a crane seat – the system is used in an aluminium smelt works.

Control systems

Reduction of installation and conversion times

The triflex® R Easy is very easy to fill and has thereby decisive mounting benefits compared to the cable protective tubes used on robots.

Reduction of installation and conversion times

Painting robot for car door seals

The robot with the replaced energy supply system has already painted about 1.2 million seals - and that too without a single failure.

Painting robot for car door seals

Industria automovilística

Multidimensionally moveable energy supply systems provide the highest flexibility and the longest holding times in all complex movements, and at the same time are installation friendly.

Industria automovilística

Clean room technology

The number of freely hanging cables should be bundled together. The specific movements executed by the robot stress the energy cables to a high degree.

Clean room technology

Glass production

Higher variability at lower costs - Multidimensional energy supply systems raise the performance of robots.

Glass production

Industria farmacéutica

The task was to design a reliable handling and also update it optically according to the latest technology.

Industria farmacéutica

8 hours saved in installation

By the use of triflex® RS, the start-up of a complete system for robot-aided production of household appliances could be shortened from 12 to 4 hours.

8 hours saved in installation

Machining center

The focus here was on protecting the cables from dirt, chips and coolants during fast movements.

Machining center

Calibration bench

This bench is used to calibrate inertia sensors which are used for inspecting pipelines, for example.

Calibration bench

Hobbing machine

Hobbing is a continual toothing method and is very flexible and highly productive.

Hobbing machine
Further interesting applications from extremely diverse areas can be found here.
