Winding machine for carbon fiber spools

No stick-slip

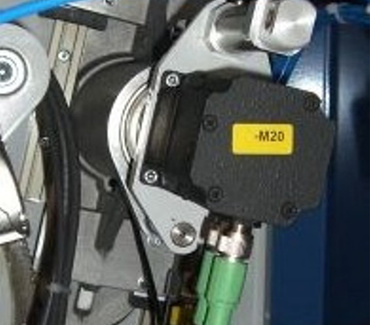

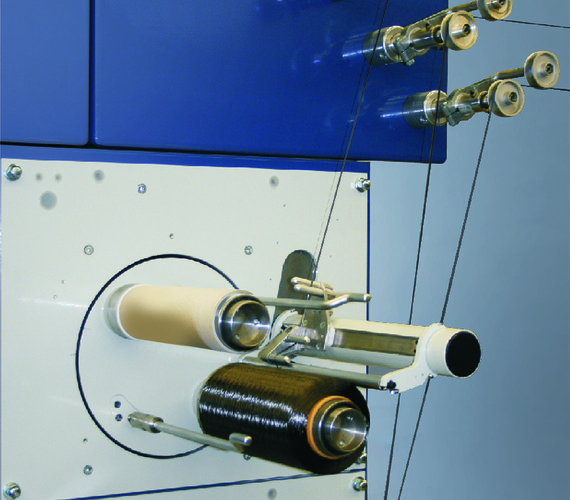

Carbon fiber spools for use in the aerospace technology, for example, are wound on this machine. The spools must be of a high quality. Due to the very slow manufacturing process for carbon fibers, the speed of this movement is extremely low. A low breakaway torque (stick slip) and minimal play were important criteria for the design of the linear guide system. A drylin® T linear guide system from igus® was chosen, which enables a sufficiently even linear movement for this application to be implemented at the low speeds.

Markus Ludwig, Georg Sahm GmbH & Co KG, Eschwege
