manus® 2011

More possibilities

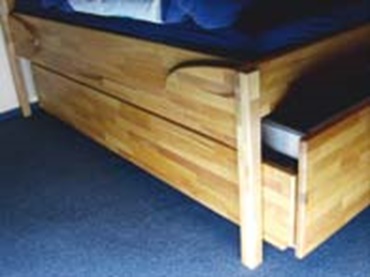

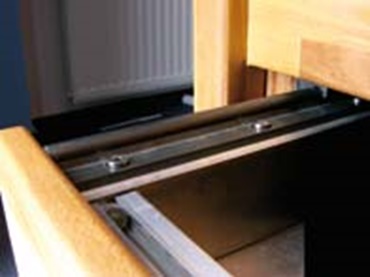

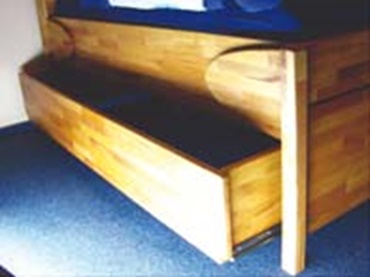

This smart application creates more stowage space under the bed. The drawer can be pulled out to three sides. This possibility is realised by an invisible rail system using drylin® W linear guides. Another challenge was the combination of wood and aluminum profiles, as they expand differently with temperature changes. This was solved by pivoting bearing housings.

KTElektronik Welsede, Klaus-Jürgen Thiesler, Emmerthal, Germany
